200mm(8”) Bicycle Traffic Light Module
Product Overview
Place of Origin: Chongqing, China
Brand Name: Ulit
Product Name: 200mm(8”) Bicycle Traffic Light Module
Application:mainly replace and are installed in existing 200mm traffic lights
Diameter:200mm
Power:R≤7W Y≤9W G≤7W
Operation Voltage:12vdc, 24vdc,42vac, 110vac,220vac
Wavelength:Red:620~630nm,Yellow: 590~595nm, Green:500~510nm
Light Source:Small Led
Color:Red Yellow Green
Housing Material:PC
Certification:ITE
Features
Conform to EN12368 standard
Operating at the temperature of -40℃～+74℃
Wide viewing angles& low power consumption
Even brightness & standard chromatogram
Compatibility with most traffic housings and controllers
Module design offers easy assembly and maintenance.
Technical Parameters
1 | Color: | Red, Green, Yellow |
2 | Light Intensity | R>600cd, Y>600cd, G>600cd |
3 | Wavelength: | Red:620~630nm,Green:500~510nm,Yellow: 590~595nm |
4 | Power Consumption | R≤8W Y≤8W G≤9W |
5 | Operation Voltage | 12vdc, 24vdc,42vdc, 110vac,, 220vac |
6 | Housing material | Polycarbonate – UV resistant |
7 | Life time & IP Grade: | >85,000 hours IP65 |

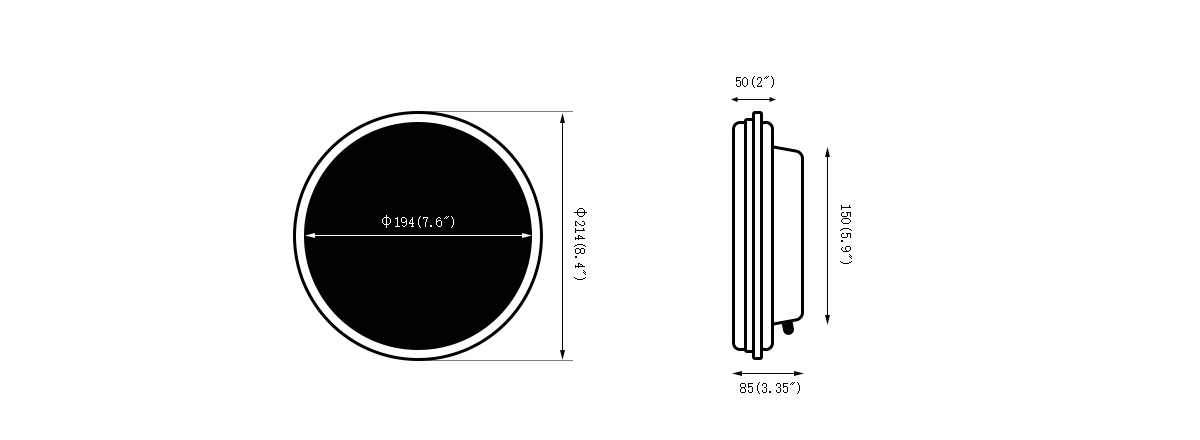

Dimensions
