9”*9” Led Static Traffic Pedestrian Light Module (Man and Hand In One)
Product Overview
Place of Origin: Chongqing, China
Brand Name: Ulit
Material: Plastic
Certification: CE/ISO9001
Features
Completely conform to ITE
Low power consumption
Wide viewing angles
Operating at the temperature of -40℃～+74℃
Retrofit design UV stabilized shell
Even brightness standard chromatogram
Less than 1% light loss with single LED failure
Up to 90% energy savings
Up to 10 times longer lifetime than incandescent
Compatibility with most traffic housings and controllers
Technical Parameters
Size (inch) | Symbol | Voltage (Typical) | Voltage Range | Power(w) Typical | Operation Temperature | Power Factor | T.H.D. |
9 Square | Hand |
120v |
95v-145v | 6 | -40°F~+165°F | 0.9 | 20% |
9 Square | Man |
120v |
95v-145v | 6 | -40°F~+165°F | 0.9 | 20% |
9 Square | Hand & Man | 120v | 95v-145v | 6/6 | -40°F~+165°F | 0.9 | 20% |

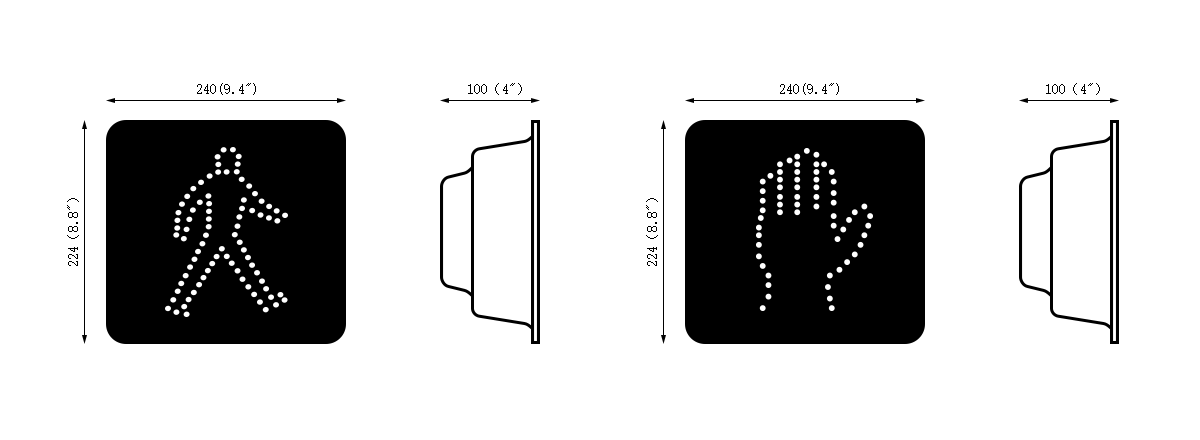

Dimensions
